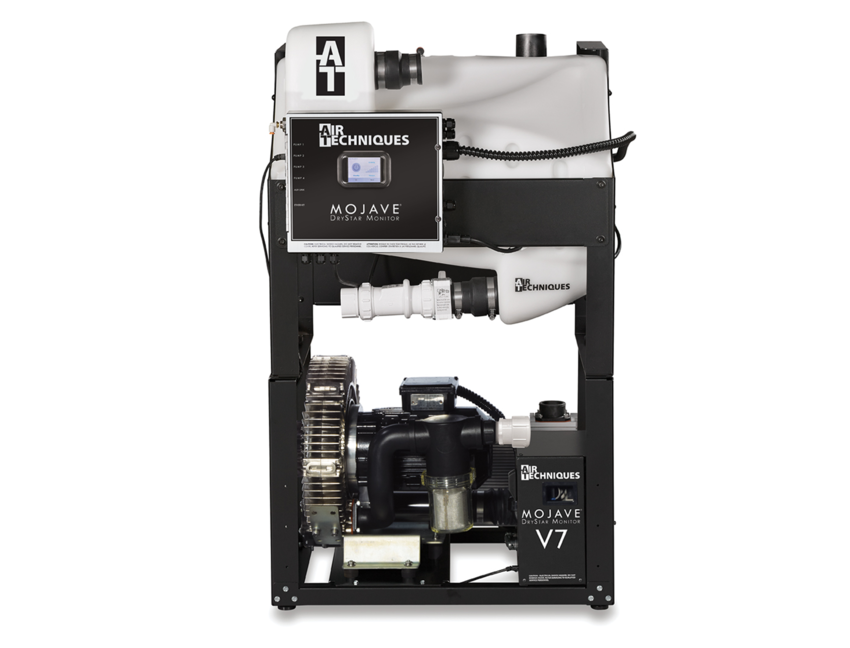

Mojave DryStar Monitor V7M
Mojave DryStar Monitor is the next generation of dry vacuum systems from Air Techniques and delivers one of the highest suction power of any dry system available today.
Air Techniques has paved the way for over five decades as North America's leading and largest manufacturer of dental vacuum systems. Mojave DryStar Monitor is designed to meet the needs of any office – with high performance, high efficiency, and low operational costs. Mojave DryStar Monitor V7M supports up to 10 simultaneous users while Mojave DryStar Monitor 2V7M supports up to 20 simultaneous users.
SUPERIOR PERFORMANCE. ENERGY EFFICIENCY. ALL IN A SINGLE DRY VACUUM.
- Big performance
- Small footprint
- Low energy usage
- No water or oil used to create vacuum
- Virtually maintenance free
- VFD pumps only spin as fast as needed
- MMC displays systems status and error/fault codes

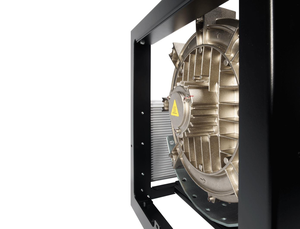

- Sound reducing impeller design
| Part Number | V7M 2V7M |
|---|---|
| Simultaneous Users | V7M | 7 - 10 2V7 M | 14 - 20 |
| Horsepower | V7M | 2.1 2V7M | 4.2 |
| Voltage (Min/Max) | V7M | 198/242 2V7M | 198/242 |
| Panel Breaker (A) | V7M | 30 2V7M | 30 (x2) |
| Pump Dimensions W x H x D (inches) | V7M | 25 x 17 x 21 2V7M | 25 x 34** x 21 **Pumps/Tanks Stacked |
|---|---|
| Tank Dimensions W x H x D (inches) | V7M | 29 x 33 x 22 2V7M | 29 x 50 x 23 |
| Weight (Lbs) | Pump: V7M | 145 2V7M | 145 (x2) Tank: V7M | 75 2V7M | 150 |
| Mojave Vent-Less Part Numbers | V7MV | Mojave V7; 7-10 Simultaneous Users; 10– gal. Tank, Vent-Less 2V7MV | Mojave 2V7; Dual System; 14-20 Simultaneous Users; Dual Continuum Tank, Vent-Less (Mojave Vent-Less Vacuum System units should never be used in conjunction with or for the purpose of Nitrous Oxide Scavenging. All waste gas evacuation should follow installation requirements set by local codes and use an air exhaust vent external to the building.) |
*Prices are subject to change without notice
