Water Supply Line Assembly OEM 90125

WATER SUPPLY LINE ASSEMBLY

• Replace the Disc Filter (Water) every 3 months or when the Disc Filter (Water) becomes discolored to prevent reduced water flow to the system. The RPI Water Supply Assembly includes two (2) extra Disc Filters (Water) plus a PM Log for your convenience.
• WARNING: Incoming water supply line pressure to the Scaler must be 25 psi (172 kPa) to 60 psi (414 kPa). Water supply line must be shut off or disconnected when Scaler is not in use.
• Also available: Disc Filter (Water) (10-pack) (RPI Part #DSF005), Union Fitting (3/16") (RPI Part #DSF048), and Cord Strap (White 6") (RPI Part #RPS672)
• See Notes below for parts included in this kit

Fits: 3/16" Push-In Union Fitting/Cavitron to Water Source

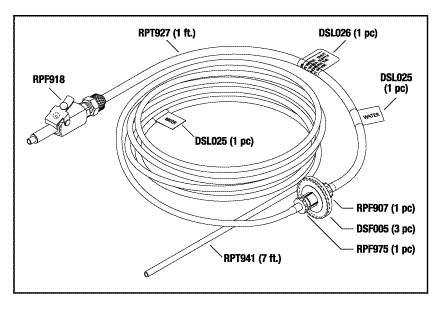

Includes:

• Male Quick Disconnect (1/4" Poly Auto Shut-Off) (RPI Part #RPF918)
• (7 ft.) Tubing (.107" ID x 3/16" OD Blue) (RPI Part #RPT941)
• (1 ft.) Tubing (.160" ID x 1/4" OD Blue) (RPI Part #RPT927)
• (3 pc) Disc Filter (Water) (RPI Part #DSF005)
• (1 pc) Luer Lock (Male x 5/32" Barb) (RPI Part #RPF907
