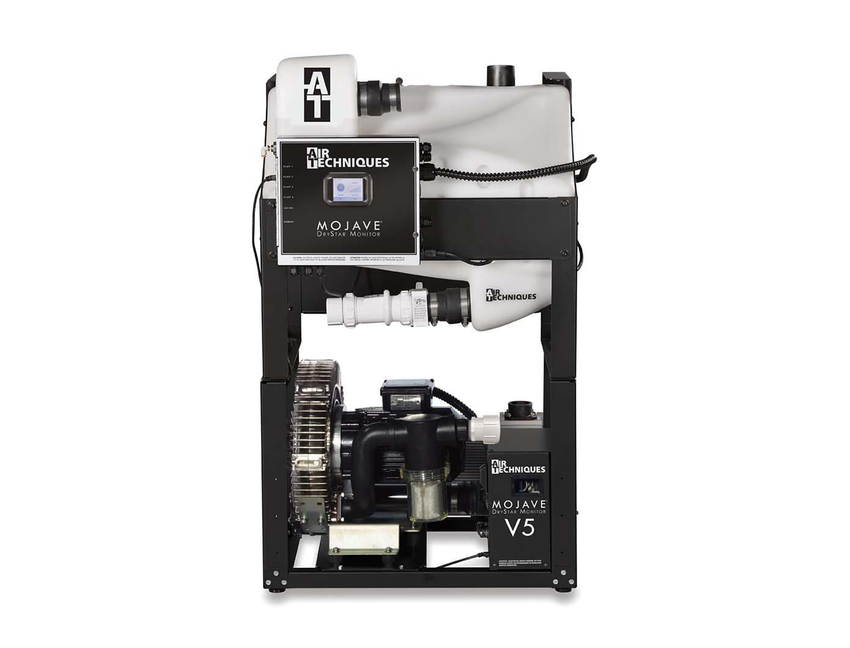

Mojave DryStar Monitor V5

Mojave DryStar Monitor is the next generation of dry vacuum systems from Air Techniques and delivers one of the highest suction power of any dry system available today.

Air Techniques has paved the way for over five decades as North America's leading and largest manufacturer of dental vacuum systems. Mojave DryStar Monitor is designed to meet the needs of any office – with high performance, high efficiency, and low operational costs. Mojave DryStar Monitor V5M supports up to 7 simultaneous users while Mojave DryStar Monitor 2V5M supports up to 14 simultaneous users and Mojave DryStar Monitor 3V5M supports up to 20 simultaneous users.

SUPERIOR PERFORMANCE. ENERGY EFFICIENCY. ALL IN A SINGLE DRY VACUUM.

• Big performance
• Small footprint
• Low energy usage
• No water or oil used to create vacuum
• Virtually maintenance free
• VFD pumps only spin as fast as needed
• MMC displays systems status and error/fault codes
• Sound reducing impeller design
• Part NumberV5M
  2V5M
  2V5MCT (Mojave 2V5 for Large Volume Applications; Dual System; 10-14 Simultaneous Users; Dual Continuum Tank)
  3V5M
  4V5M
  Simultaneous UsersV5M | 5 - 7
  2V5M | 10 - 14
  3V5M | 15 - 20
  4V5M | 20 - 25
  HorsepowerV5M | 1.9
  2V5M | 3.8
  3V5M | 5.7
  4V5M | 7.6
  Voltage (Min/Max)V5M | 198/242
  2V5M | 198/242
  3V5M | 198/242
  4V5M | 198/242
  Panel Breaker (A)V5M | 20
  2V5M | 20 (x2)
  3V5M | 20 (x3)
  4V5M | 20 (x4)
  Pump Dimensions W x H x D (inches)V5M | 25 x 17 x 21
  2V5M | 25 x 34** x 21
  3V5M | 25 x 51** x 21
  4V5M | 25 x 34** x 21 (x2)
  **Pumps/Tanks Stacked
  Tank IncludedV5M | MT10
  2V5M | MT10
  3V5M | CT20
  4V5M | CT20
  Tank Dimensions W x H x D (inches)V5M | 29 x 33 x 22
  2V5M | 29 x 33 x 22
  3V5M | 29 x 50 x 23
  4V5M | 29 x 50 x 23
  Weight (lbs)Pump:
  V5M | 145
  2V5M | 145 (x2)
  3V5M | 145 lbs (x3)
  4V5M | 145 lbs (x4)

  Tank:
  V5M | 75
  2V5M | 75
  3V5M | 150
  4V5M | 150
  Mojave Vent-Less Part NumbersV5MV | Mojave V5; 5-7 Simultaneous Users; 10– gal. Tank, Vent-Less
  2V5MV | Mojave 2V5; Dual System; 10-14 Simultaneous Users; 10– gal. Tank, Vent-Less
  2V5MCTV | Mojave 2V5 for Large Volume Applications; Dual System; 10-14 Simultaneous Users; Dual Continuum Tank, Vent-Less
  3V5MV | Mojave 3V5; Triple System; 15-20 Simultaneous Users; Dual Continuum Tank, Vent-Less
  4V5MV | Mojave 4V5; Quad System; 20-25 Simultaneous Users; Dual Continuum Tank, Vent-Less

  (Mojave Vent-Less Vacuum System units should never be used in conjunction with or for the purpose of Nitrous Oxide Scavenging. All waste gas evacuation should follow installation requirements set by local codes and use an air exhaust vent external to the building.)
